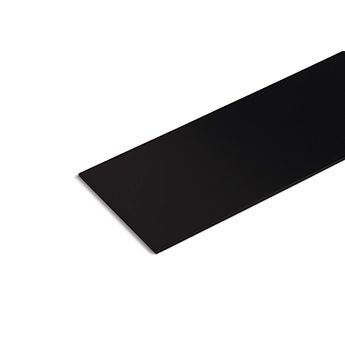

聚苯乙烯,导电,片, High Impact Conductive Polystyrene, Black, 2mm厚
产品介绍
| 订货号 | 包装规格 | | Sizes | | 760-565-65 | 100 mm x 100 mm | | 070-708-35 | 150 mm x 150 mm | | 838-548-28 | 300 mm x 300 mm |
产品参数 | Colour[颜色] | Black | | Thickness[厚度] | 2mm | | Type[类型] | Conductive polymer | | Mechanical Properties(机械性能) | | Elongation at break ( % ) | 36.0 | | Izod impact strength ( J m⁻¹ ) | 999999.0 - No Break | | Tensile modulus ( GPa ) | 1.60 | | Tensile strength ( MPa ) | 27.00 | | Electrical Properties(电气特性) | | Surface resistivity ( Ohm/sq ) | 10²-10⁷ | | Volume resistivity ( Ohmcm ) | 10²-10⁷ | | Thermal Properties(热性能) | | Coefficient of thermal expansion ( x10⁻⁶ K⁻¹ ) | 4.500 | | Heat-deflection temperature - 1.8MPa ( C ) | 85.0 | | Physical Properties(物理性质) | | Density ( g cm⁻³ ) | 1.040 |
其他参数 公差 | 长度 | <100mm | ±1mm |
|---|
| ≥100mm | +2% / -1% | | 直径 | <100mm | ±1mm |
|---|
| ≥100mm | +2% / -1% | | 厚度 | | ±10% |
|---|
| 陶瓷 | ±20% | | 复合材料 | ±20% | | 聚合物 | ±20% | | 长度 1 | <100mm | ±1mm |
|---|
| ≥100mm | +2% / -1% | | 长度 2 | <100mm | ±1mm |
|---|
| ≥100mm | +2% / -1% |
| |
