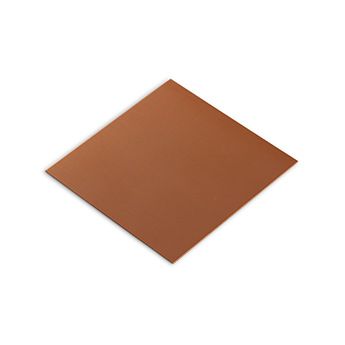

磷青铜,箔, Cu94Sn 6, Half Hard Temper, 0.5mm厚
产品介绍
| 订货号 | 包装规格 | | Coil | | 065-876-80 | 0.5 m | | 361-720-76 | 1 m | | 807-681-44 | 2 m | | 778-948-03 | 25 mm x 25 mm | | 276-758-05 | 50 mm x 50 mm | | 948-095-05 | 100 mm x 100 mm | | 664-402-79 | 200 mm x 200 mm |
产品参数 | Coil Width[卷材宽度] | 212mm | | Temper[状态] | Half Hard | | Thickness[厚度] | 0.5mm | | Typical Analysis(典型分析) | | Pb | <200 PPM | | Mechanical Properties(机械性能) | | Elongation at break ( % ) | < 60.0 | | Hardness - Brinell | 80 - 225 | | Izod impact strength ( J m⁻¹ ) | 62.0 | | Modulus of elasticity ( GPa ) | 90.0 - 120.0 | | Shear strength ( MPa ) | 250 - 430 | | Tensile strength ( MPa ) | 320.00 - 740.00 | | Thermal Properties(热性能) | | Coefficient of thermal expansion ( x10⁻⁶ K⁻¹ ) | 17.000 @20-100℃ | | Melting point ( C ) | 900.00 - 1050.00 | | Thermal conductivity ( W m⁻¹ K⁻¹ ) | 50.00 - 75.00 @23℃ | | Electrical Properties(电气特性) | | Electrical resistivity ( μOhmcm ) | 11.0-16.0 | | Temperature coefficient ( K⁻¹ ) | 0.00060 - 0.00070 | | Physical Properties(物理性质) | | Density ( g cm⁻³ ) | 8.900 |
其他参数 公差 | 长度 | <100mm | ±1mm |
|---|
| ≥100mm | +2% / -1% | | 直径 | <100mm | ±1mm |
|---|
| ≥100mm | +2% / -1% | | 厚度 | <0.01mm | ±25% |
|---|
| ≤0.05mm | ±15% | | >0.05mm | ±10% | | 长度 1 | <100mm | ±1mm |
|---|
| ≥100mm | +2% / -1% | | 长度 2 | <100mm | ±1mm |
|---|
| ≥100mm | +2% / -1% |
| |
