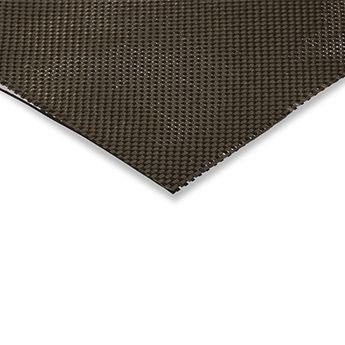

碳,织物, C, 0.15mm厚
碳,织物, C, 0.15mm厚图片
品牌:Goodfellow
产地:英国


产品介绍

We also supply Carbon fibre/polyaramid blend fabrics.

Carbon fibre: Laminates based on this have high tensile, compressive and flexural strength and are very stiff.

Plain weave: Warp (longitudinal) yarns (ends) pass over and under alternate weft (transverse) yarns (picks) and vice-versa.

订货号包装规格
Sizes
479-556-62100mm x 100mm
036-358-94150mm x 150mm
393-377-24250mm x 250mm
108-565-49500mm x 500mm
570-679-59500mm x 1000mm
334-949-571000mm x 1000mm

产品参数

69x69
Thickness[厚度]0.15mm
Warp Yarn[经纱]66
Weave[织法]Plain
Weft Yarn[纬纱]66
Weight[重量]92g.m⁻²
Thermal Properties(热性能)
Coefficient of thermal expansion ( x10⁻⁶ K⁻¹ )0.600 - 4.300 @0-100℃
Melting point ( C )3650.00
Specific heat ( J K⁻¹ kg⁻¹ )712.0 @25℃
Thermal conductivity ( W m⁻¹ K⁻¹ )80.00 - 240.00 @0-100℃
Mechanical Properties(机械性能)
Bulk modulus ( GPa ) ( Diamond )542.0
Bulk modulus ( GPa ) ( Graphite )33.0
Hardness - Mohs ( Diamond )10.00
Hardness - Mohs ( Graphite )0.50 - 1.00
Material conditionDiamond
Material conditionGraphite
Tensile modulus ( GPa ) ( Graphite )4.80
Atomic Properties(原子属性)
Atomic number6
Atomic weight ( amu )12.01100
Crystal structureHexagonal/Diamond
Electronic structureHe2s²2p²
Ionisation potential ( No./eV )6 / 490
Ionisation potential ( No./eV )4 / 64.5
Ionisation potential ( No./eV )1 / 11.26
Ionisation potential ( No./eV )3 / 47.9
Ionisation potential ( No./eV )2 / 24.38
Ionisation potential ( No./eV )5 / 392
Natural isotope distribution ( Mass No./% )12 / 98.89
Natural isotope distribution ( Mass No./% )13 / 1.11
Photo-electric work function ( eV )4.80
Thermal neutron absorption cross-section ( Barns )0.0034
Valences shown2 , 3, 4
Physical Properties(物理性质)
Boiling point ( C )5000
Density ( g cm⁻³ )2.250 @20℃
Electrical Properties(电气特性)
Electrical resistivity ( μOhmcm )1375@0℃
Thermal emf against Pt (cold 0C - hot 100C) ( mV )0.70

其他参数

公差

纱支数±10%
特克斯数±10%
长度<100mm±5mm
≥100mm±5%
厚度±25%
长度 1<100mm±5mm
≥100mm±5%
长度 2<100mm±5mm
≥100mm±5%
