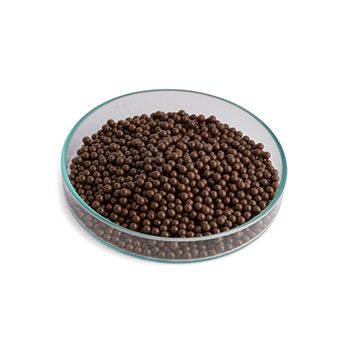

聚酰胺聚酰亚胺,球体, PAI, 3.18mm 直径
产品介绍
订货号 | 包装规格 | 681-763-01 | 20 Piece | 220-386-34 | 50 Piece | 548-294-91 | 100 Piece | 536-869-41 | 200 Piece |
产品参数 Diameter[直径] | 3.18mm | Grade[等级] | Torlon® 4203L | Quantity[数量] | 20 Piece - 200 Piece | Sphericity[球面] | 25.4μm | Type[类型] | Precision Sphere | Physical Properties(物理性质) | Density ( g cm⁻³ ) | 1.420 - 1.460 | Flammability | V-0 | Limiting oxygen index ( % ) | 44 - 45 | Radiation resistance | Good | Resistance to Ultra-violet | Good | Water absorption - equilibrium ( % ) | 3.00 - 4.00 | Water absorption - over 24 hours ( % ) | 0.300 | Chemical Resistance(耐化学性) | Acids - concentrated | Fair-Poor | Acids - dilute | Fair | Alcohols | Good-Poor | Alkalis | Poor | Aromatic hydrocarbons | Good | Greases and Oils | Good | Halogenated Hydrocarbons | Good-Poor | Halogens | Good-Poor | Ketones | Good | Mechanical Properties(机械性能) | Elongation at break ( % ) | 7.0 -15.0 | Hardness - Rockwell | E72-86 | Izod impact strength ( J m⁻¹ ) | 60.0 - 140.0 - Notched | Poisson's ratio | 0.380 | Tensile modulus ( GPa ) | 4.50 - 6.80 | Tensile strength ( MPa ) | 110.00 - 190.00 | Thermal Properties(热性能) | Coefficient of thermal expansion ( x10⁻⁶ K⁻¹ ) | 25.000 - 31.000 | Heat-deflection temperature - 1.8MPa ( C ) | 278.0 - 9.0 | Lower working temperature ( C ) | <= -200 | Specific heat ( J K⁻¹ kg⁻¹ ) | 1000.0 | Thermal conductivity ( W m⁻¹ K⁻¹ ) | 0.26 - 0.54 @23℃ | Upper working temperature ( C ) | 200 - 260 | Electrical Properties(电气特性) | Dielectric constant @1MHz | 4 - 5 | Dielectric strength ( kV mm⁻¹ ) | 23.0 at 1mm | Dissipation factor @ 1MHz | 0.0300 - 0.0420 | Surface resistivity ( Ohm/sq ) | 8-50x10¹⁷ | Volume resistivity ( Ohmcm ) | 0.08-2x10¹⁷ | Pultrusion(挤拉成型) | Compressive strength ( MPa ) | 170 -220 |
其他参数 公差
| |
